40A Inverter Air Plasma Cutter Sheet Processing

● Combine digital control with MCU technology to achieve intelligent collaboration..Use compressed air as cutting gas source, cost-effective.Air pressure and cutting current adjustable.Easy operation, narrow cutting seams, smooth cutting performance andless deformation.
● Circuit protection against over current, over voltage and over heat.Plastic panel, digital display, compact design and easy to carry around.-Light industrial applications: production line work; plant maintenance;garage/job shops; fabrication;etc.

Availability:



Inquire Add to Basket

Description

Specification

Product Advantage

Product Uses

Download File

Product Overview

Compact Design & Light Industrial Specialized Technical Parameters

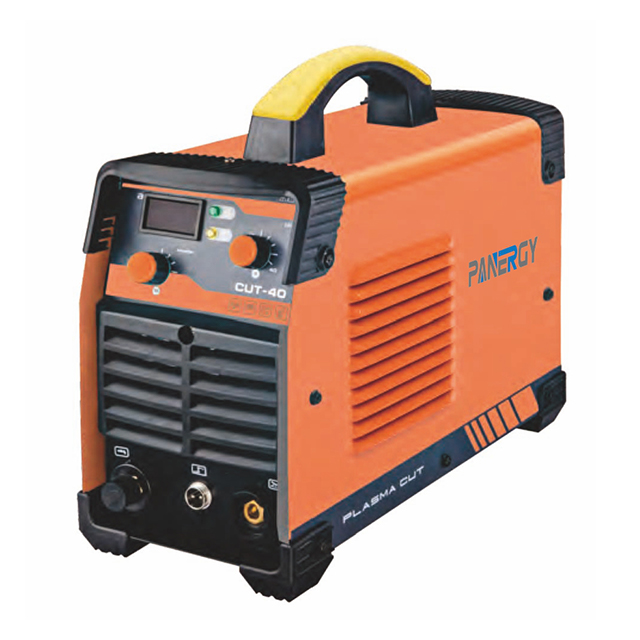

The 40A Inverter Air Plasma Cutter is a portable and high-precision metal cutting tool customized for light industrial manufacturers, small metal processing workshops and on-site maintenance service providers, integrating digital control and MCU intelligent collaboration technology. With a universal AC230V input power voltage, 50/60Hz frequency and 4.8KVA rated input capacity, it features a stepless adjustable output current range of 10-40A and a touch arc start mode with an ignition rate of ≥99.8%, suitable for precise thin sheet cutting. Its no-load voltage is 236V, matching a recommended air pressure of 0.2-0.4mpa with compressed air as the cutting gas source, realizing cost-effective and environmental-friendly operation. The compact physical design has dimensions of 420×155×295mm and a net weight of only 7.4kg, with a plastic digital display panel, B-class insulation and IP21S protection grade, plus built-in over current, over voltage and over heat protection. It is easy to carry and operate, perfectly solving the needs of light industrial on-site processing and small-batch customized cutting.

40A Inverter Air Plasma Cutter Sheet Processing

MODEL	CUT-30	CUT-40	CUT-50
Input Power Voltage(V)	AC230V	AC230V	AC230V
Input Power Frequency(Hz)	50/60	50/60	50/60
Rated Input Capacity(KVA)	3.5	4.8	5.2
Output Current Range(A)	10-30	10-40	10-50
No-Load Voltage(V)	230	236	245
Rated Duty Cycle(%)	60	60	60
Arc Start	Touch	Touch	Touch
Power Factor (COSΦ)	0.85	0.85	0.85
Air Pressure(mpa)	0.2-0.4	0.2-0.4	0.2-0.4
Insulation Grade	B	B	B
Protection Grade	IP21S	IP21S	IP21S
Dimensions(mm)	420155295	420155295	420155295
Weight(Kg)	7.2	7.4	7.6

Advantages of the 40A Inverter Air Plasma Cutter

Ultra-Portability for Mobile Light Industrial Operation

As a portable touch arc plasma cutter for small metal workshops, this product highlights lightweight and mobility in design. With a net weight of only 7.4kg and a compact body, it is equipped with a portable handle, which can be easily moved between different workstations in the workshop or carried to outdoor on-site maintenance sites. The one-key start and intuitive digital display panel realize simple parameter adjustment, with no high professional skills required for operation, reducing the employment and training costs of small processing workshops and light industrial manufacturers, and adapting to the flexible operation needs of small-scale production.

Cost-Effective Energy Saving for Small Business Operations

Adopting the same high-efficiency IGBT inverter core as high-power models, its energy conversion rate reaches up to 95%, saving 40-50% of electricity compared with traditional cutting tools, and the standby power is ≤5W with no idle power consumption, which is very suitable for the low-power operation needs of small workshops. The low rated input capacity reduces the requirement for on-site power supply, and the built-in multi-circuit protection system effectively avoids equipment damage caused by improper operation, prolongs the service life of core components, and reduces the daily maintenance and replacement costs of small business operators.

Precise Thin Sheet Cutting for Customized Processing

This compact air plasma cutter for on-site maintenance achieves a cutting precision of ±0.1mm for metal sheets within 15mm thickness, with smooth cut edges and no obvious burrs or slag. The 10-40A stepless current adjustment and stable air pressure control allow it to adapt to the precise cutting of various thin conductive metals including carbon steel, stainless steel, aluminum and copper plates from 0.5mm to 15mm. The high-frequency arc starting system ensures stable ignition without edge deformation, which is especially suitable for the fine cutting of small and complex workpieces, meeting the personalized and customized processing needs of the light industrial decoration and sheet metal customization industry.

Uses of the 40A Inverter Air Plasma Cutter

Light Industrial Sheet Metal Customization & Decoration Industry

It is the core tool for stainless steel decorative parts, aluminum alloy curtain wall components and metal decoration product processing in the decoration and sheet metal customization industry. Its high cutting precision and stepless current adjustment realize the fine cutting of small and complex customized workpieces, and the clean cut edges ensure the aesthetic quality of decorative metal products, perfectly meeting the personalized processing needs of the decoration industry and small custom sheet metal factories.

On-Site Maintenance & Small Repair Workshops

In auto repair, welding repair and small individual processing workshops, this plasma cutter is a practical daily operation tool. It is mainly used for small-batch metal cutting, welding pre-processing and defective part cutting, with simple operation and low energy consumption. Its portability allows it to be used flexibly in the workshop or on-site vehicle maintenance, effectively shortening the maintenance cycle and improving the work efficiency of small repair workshops.

Factory Routine Maintenance & Production Line Auxiliary Work

For various manufacturing plants, it is an ideal auxiliary cutting tool for factory routine equipment maintenance and production line small-position processing. It is used for cutting small metal parts required for equipment maintenance and auxiliary cutting of light sheet metal parts in the production line. Its compact size can be placed in small workstations of the production line, and the fast cutting speed ensures the smooth progress of the production line, realizing the efficient matching of light industrial production and maintenance.
