Stationary Belt Driven Air Compressor Metalworking

Belt-driven air compressors are industrial equipment that transmit motor power via belts to drive the compressor head for air compression. It features a simple and compact structure, easy maintenance and pressure adjustment by belt replacement, and low purchase and maintenance costs. The product delivers stable compressed air, widely applied in manufacturing, auto repair, painting and other fields to power pneumatic tools and production lines. Equipped with high-efficiency motors and precision air ends, it runs reliably with low noise and energy consumption, realizing long-term continuous operation to meet diverse industrial air supply needs.

Availability:



Inquire Add to Basket

Description

Specification

Product Advantage

Product Uses

Download File

Product Overview

The 3KW stationary belt-driven air compressor from PANERGY SW Series is an industrial-grade air supply equipment exclusively engineered for enterprise users, small and medium-sized manufacturing plants, and metal processing workshops. It adopts belt-driven transmission to convert motor power into stable air compression, with a fixed 3KW (4HP) high-efficiency motor matching the YB3065 air end and a cylinder size of 65×3 mm. The equipment delivers a constant air capacity of 360 L/MIN (12.6 C.F.M) at 970 R.P.M, with a stable working pressure of 8 BAR (115 PSI), and offers optional air storage tanks of 100L, 150L, 200L and 250L to adapt to different on-site air demand. Its compact overall dimensions (117×44×80 cm to 132×56×110 cm) save workshop space, and the integration of high-precision air end and energy-saving motor enables long-term continuous operation, perfectly meeting the stable air supply needs of high-precision industrial processes. What makes it stand out is the low noise industrial air compressor for indoor use design, with operating noise controlled at 68-72dB(A), far below industrial noise standards.

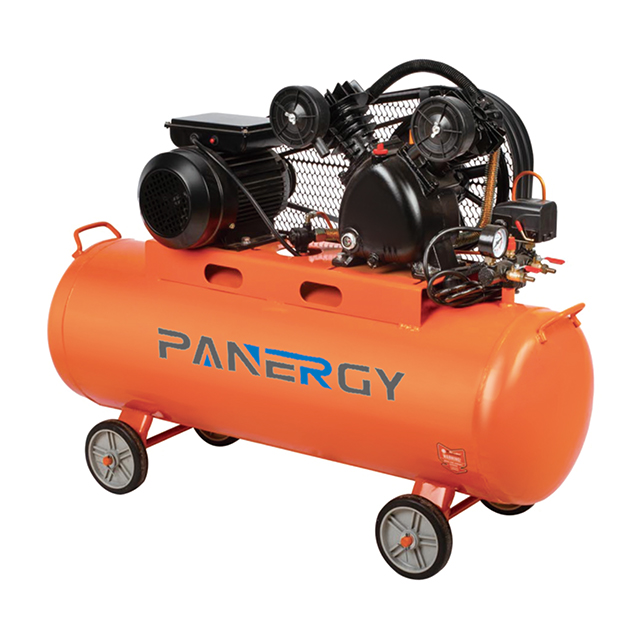

Silent Stationary Belt Driven Air Compressor Metalworking

MODEL	MOTOR POWER		HEAD CYLINDER		CAPACITY		SPEED	PRESSURE		TANK		DMENSIONS
MODEL	KW	HP	TYPE	MM	L/MIN	C.F.M	R.P.M	BAR	PSI	L	GAL	LxWxH
SW036/8-100S	3	4	YB3065	65*3	360	12.6	970	8	115	100	26.5	1174480
SW036/8-150S	3	4	YB3065	65*3	360	12.6	970	8	115	150	40	1324490
SW036/8200S	3	4	YB3065	65*3	360	12.6	970	8	115	200	52.9	1344995
SW036/8250S	3	4	YB3065	65*3	360	12.6	970	8	115	250	66.0	13256110

Advantages of PANERGY Silent Stationary Belt-Driven Air Compressor

Precision Pressure Regulation & Stable Air Output

Equipped with an intelligent electronic pressure regulation system, the compressor achieves a precise control accuracy of ±0.01MPa and a stable working pressure range of 0.7-1.0MPa. The large-volume air storage tank effectively eliminates pressure fluctuations in the air supply process, ensuring continuous and steady compressed air output. This performance fully meets the strict air pressure requirements of pneumatic tools and assembly lines in high-precision industrial production, avoiding product quality defects caused by unstable air pressure.

Durable Cast Iron Build & Extended Operational Lifespan

The air end is forged with high-strength cast iron and processed by precision honing, which greatly improves wear resistance and compression efficiency. The wear-resistant rubber composite drive belt has a service life of up to 7000 working hours, and all key components are made of high-quality anti-corrosion materials with a dust-proof and moisture-proof structural design. Under normal use, the whole machine has a service life of more than 10 years, effectively reducing the frequency of equipment replacement for enterprise users and lowering long-term investment costs.

Tool-Free Quick Maintenance & Low After-Sale Costs

With a highly modular structural design, core parts such as the drive belt, air filter and oil separator of this silent air compressor for metalworking can be quickly disassembled and replaced within 10 minutes without professional tools. Routine maintenance only requires simple cleaning and part inspection, without complex debugging operations. The annual maintenance cost is less than 5% of the product price, which greatly reduces the after-sales management burden of manufacturing enterprises and workshop operators.

Ultra-Low Noise Operation for Indoor Workshop Scenarios

Equipped with shock-absorbing belt pulleys and a multi-stage silencing air end, it fundamentally reduces vibration and noise generated during operation. The fully enclosed sound insulation shell and optimized air duct design further block noise transmission. It is suitable for indoor workshop use without additional noise reduction measures, creating a comfortable and compliant working environment for on-site operators and complying with modern industrial production environmental protection requirements.

Uses of PANERGY Silent Stationary Belt-Driven Air Compressor

Small-Scale Metal Processing (Core Application)

As a dedicated 3KW silent air compressor for metalworking, it is widely applied in metal stamping, bending and polishing processes of small metal processing plants. Its stable high-pressure output meets the power demand of various pneumatic metal processing tools, and the energy-saving motor design reduces the electricity cost of continuous production, which is highly suitable for the daily production needs of small and medium-sized metal processing workshops.

General Manufacturing & Assembly Lines

It provides stable compressed air for pneumatic tools such as wrenches, screwdrivers and riveters on mechanical assembly lines of auto parts, home appliance and hardware manufacturing enterprises. Precise pressure control ensures the consistent operation of pneumatic equipment, effectively improving assembly efficiency and product processing precision.

Auto Repair & Maintenance Workshops

The adjustable pressure output adapts to different repair needs such as tire inflation, spray painting and air wrench operation in auto repair workshops. Its compact structure saves limited workshop space, and the low-noise design avoids disturbing the working environment of small and medium-sized repair sites, making it an ideal air supply equipment for auto maintenance enterprises.

Woodworking & Furniture Production

It supports pneumatic cutting, sanding and edge banding equipment in furniture factories. The continuous and stable air supply prevents equipment downtime caused by pressure fluctuations, ensuring the smooth progress of wood processing procedures. It is also suitable for wood surface spraying, providing uniform air pressure to create a perfect paint finish for furniture products.

Construction & Decoration Projects

With strong environmental adaptability, it can work stably in open or semi-open construction environments, powering pneumatic nail guns, paint sprayers and air hammers for on-site decoration and building construction. Its dust-proof and moisture-proof structure resists the harsh conditions of construction sites, meeting the mobile air supply needs of construction and decoration enterprises.
