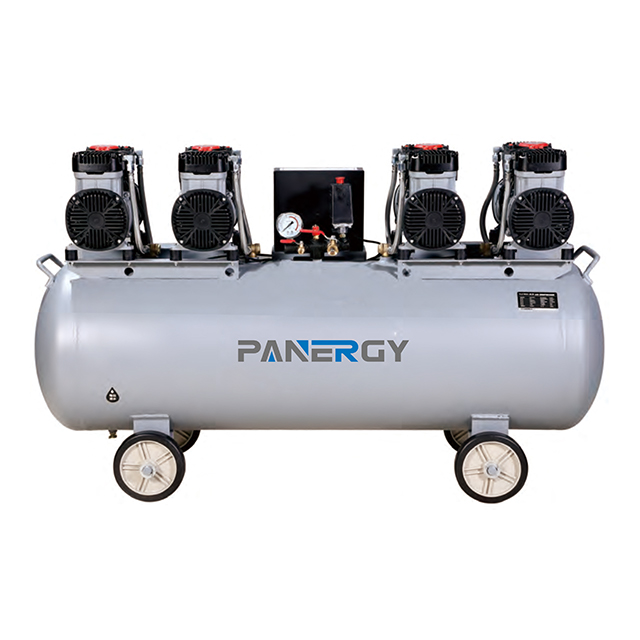

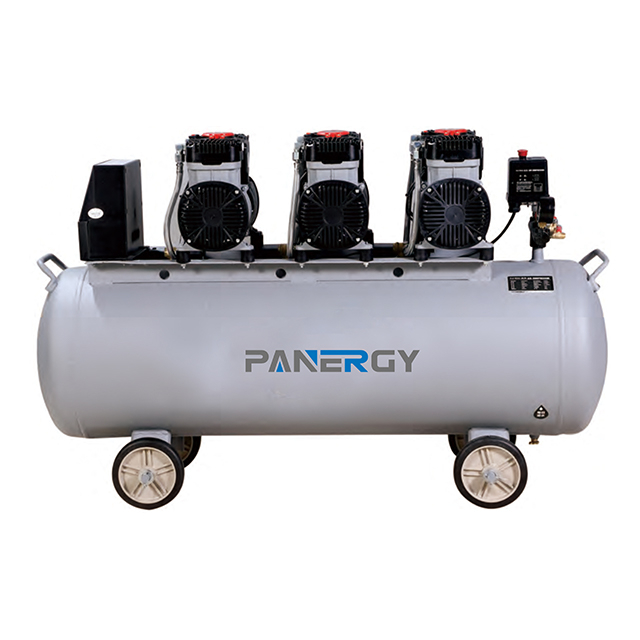

The PANERGY static-free oil-free air compressor is a high-performance industrial air supply solution engineered exclusively for precision manufacturing sectors like semiconductor production, electronics processing and high-end laboratory operations. As a core product for industrial clients pursuing ultra-clean compressed air, this equipment abandons traditional lubricating oil in its compression chamber, adopting advanced static-free and oil-free compression core technology to deliver dry, pure and oil-contamination-free compressed air that meets the strictest air quality standards of precision industrial fields. Available in four models including NEWOF1100×380L and NEWOF1500×3150L, it features motor power ranging from 1.1×3 KW (1.5×3 HP) to 1.5×3 KW (2×3 HP), air capacity of 501-660 L/MIN (17.61-23.16 C.F.M), stable working pressure of 8 BAR (116 PSI) and tank volume of 80-150 L. With a net weight of only 18kg, integrated anti-slip handle and universal wheels, the static-free oil-free air compressor for precision semiconductor manufacturing achieves one-hand movement and quick position adjustment, making it suitable for narrow workspaces in precision industrial production lines while ensuring no static or oil mist pollution to sensitive components.

MODEL | MOTOR POWER | HEAD | CYLINDER | CAPACITY | SPEED | PRESSURE | TANK | DIMENSONS | ||||
KW | HP | TYPE | MM | L/MIN | C.F.M | R.P.M | BAR | PSI | L | GAL | LxWxH | |
NEWOF1100*380L | 1.1*3 | 1.5*3 | OF1100*3 | 57.8*6 | 501 | 17.61 | 2850 | 8 | 116 | 80 | 21.1 | 78*37*66.5 |
NEWOF1100*3100L | 1.1*3 | 1.5*3 | OF1100*3 | 57.8*6 | 501 | 17.61 | 2850 | 8 | 116 | 100 | 26.5 | 117*38*69.5 |
NEWQF1500*3100L | 1.5*3 | 2*3 | OF1500*3 | 63.7*6 | 660 | 23.16 | 2850 | 8 | 116 | 100 | 26.5 | 117*38*69.5 |
NEWOF1500*3150L | 1.5*3 | 2*3 | OF1500*3 | 63.7*6 | 660 | 23.16 | 2850 | 8 | 116 | 150 | 39.8 | 153*42*74 |
The most prominent advantage of this equipment is its dual static-free and oil-free compression technology, which completely eliminates oil contamination and static electricity generation in the air supply process—two critical pain points for semiconductor and electronics manufacturing. It avoids secondary pollution of circuit boards, chips and precision parts caused by oil mist and static adsorption of dust, ensuring the yield and quality of high-precision industrial products.
With a compact footprint and lightweight body, the portable static-free air compressor for industrial use can be flexibly placed in SMT production lines, mobile precision processing workbenches and narrow laboratory areas. The integrated universal wheels and anti-slip handle enable quick relocation between different workstations, greatly improving the operational flexibility of precision manufacturing enterprises.
Equipped with a professional silent muffler system and rubber shock-absorbing foot pads, the working noise is controlled at only 58dB(A), far lower than the 75dB(A) industry average. The low-vibration design ensures stable operation without additional fixing devices, making it ideal for noise-sensitive environments such as electronic chip assembly workshops and scientific research laboratories, creating a quiet working space for industrial operators.
Powered by a high-efficiency permanent magnet motor with an energy conversion rate of up to 95%, the NEWOF-3 industrial oil-free air compressor saves 30% of power consumption compared with traditional oil-lubricated compressors under the same air output. Its intelligent pressure constant control system automatically adjusts motor speed according to real-time air demand of production lines, avoiding energy waste caused by idle operation and significantly reducing the long-term operation costs of precision industrial enterprises.
As the core application scenario, this static-free oil-free air compressor for semiconductor processing provides clean air supply for electronic component cleaning, SMT production lines, chip packaging and precision instrument assembly. Its static-free feature effectively prevents dust adsorption on sensitive electronic components, ensuring the stability and reliability of semiconductor production processes.
It is an ideal air source for chemical, biological and physical laboratories, supplying pure compressed air for gas chromatography, sample preparation and experimental pneumatic devices. The low-noise and low-vibration performance ensures no interference with the operation of precision experimental instruments, and the compact size perfectly fits the limited work areas of laboratories.
Complying with international food safety standards such as HACCP and FDA, the equipment is suitable for high-end food and beverage processing enterprises, providing clean compressed air for food packaging, filling and ingredient mixing. It completely avoids oil contamination of food raw materials and finished products, meeting the strict hygiene requirements of high-end food production.
For high-end dental clinics and professional medical institutions, it supplies clean compressed air for dental handpieces, nebulizers and high-precision minor medical equipment. The low-noise operation will not disturb patients, and the portable design enables flexible use in consulting rooms and special medical treatment scenarios, matching the high-standard service requirements of professional medical institutions.
