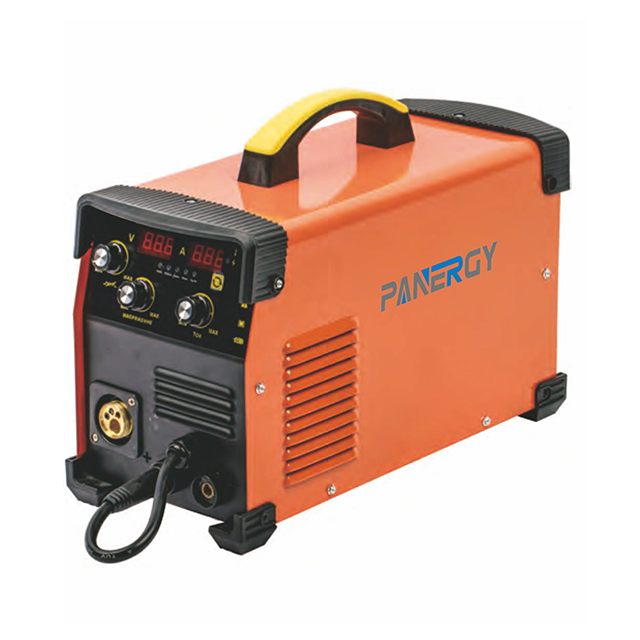

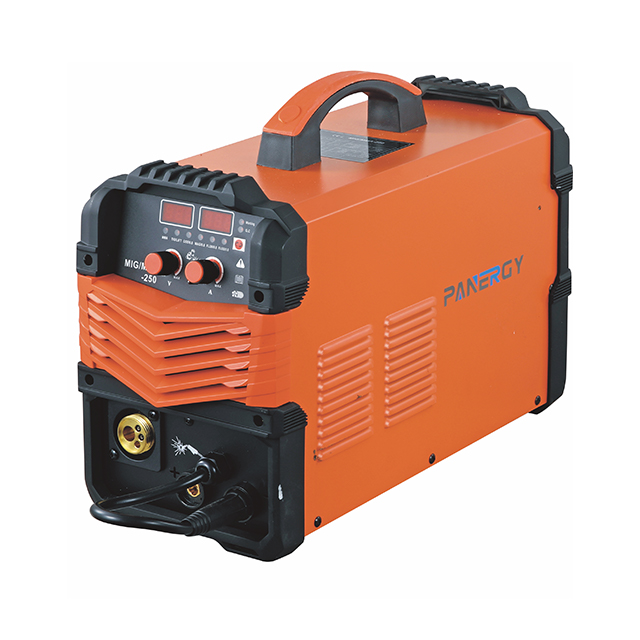

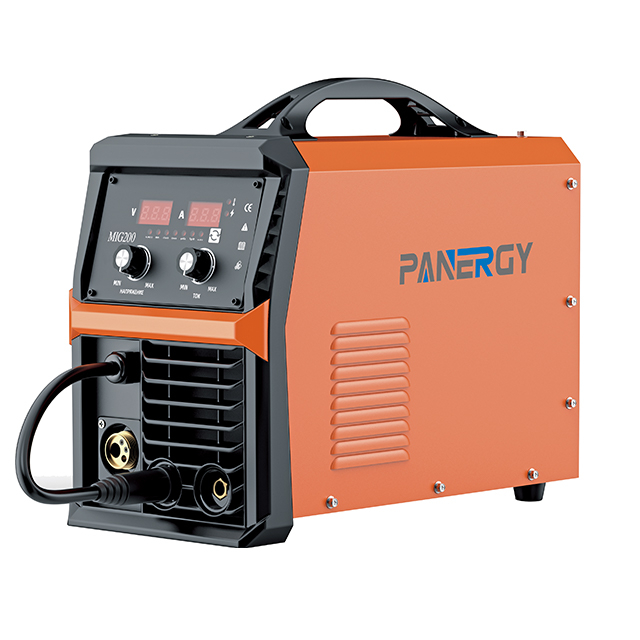

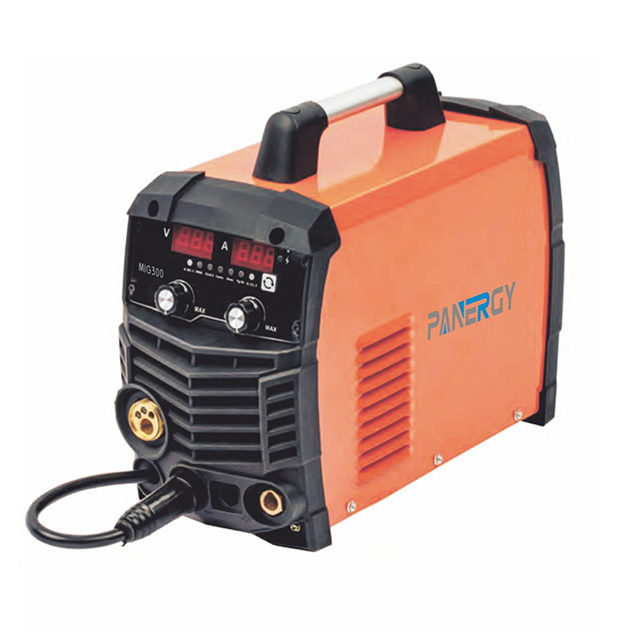

IGBT MIG MMA Welding Machine 300A Fabrication

● MIG & MMA & LIFT TIG function in one machine.Advanced IGBT technology, compact design, lightweight,and energy saving.
● Digital display, precisely controlled welding current, stable welding process,and excellent welding characteristics.Automatic over-current, over-heat and over-voltage protection.Integrated design with a wire feeder built-in. Facilitate mobility operations.-Gas/gasless usage optional.
● Applicable for welding low carbon steel and low alloy steel of different thickness.

Availability:



Inquire Add to Basket

Description

Specification

Product Advantage

Product Uses

Download File

Product Overview

Our 300A IGBT MIG MMA Welding Machine is a high-performance multi-process welding solution engineered exclusively for metal fabrication business partners and industrial manufacturing operators. Built with advanced IGBT inverter technology, this unit integrates MIG, MMA, and LIFT TIG welding capabilities into a single compact system, delivering exceptional power efficiency, stable arc performance, and reliable operation for heavy-duty fabrication workflows.

IGBT MIG MMA Welding Machine 300A Fabrication

It features a high-precision digital display for real-time current monitoring and adjustment, with an integrated wire feeder design that streamlines welding setup and operation. The welder supports both gas and gasless welding modes, adapting to diverse workshop and on-site fabrication conditions. Equipped with automatic over-current, over-heat, and over-voltage protection systems, it ensures uninterrupted operation even during continuous production runs. Compatible with low carbon steel and low alloy steel of varying thicknesses, it is the ideal welding equipment for high-volume industrial fabrication projects.

MODEL	MIG/MMA-140N	MIG/MMA-160N	MIG/MMA-180N	MIG/MMA-200N
Input Power Voltage(V)	AC230V	AC230V	AC230V	AC230V
Input Power Frequency(Hz)	50/60	50/60	50/60	50/60
Rated Input Capacity(KVA)	3.8	4.5	5.3	6.1
Output Current Range(MIG)(A)	40-140	40-160	40-180	40-200
Output Current Range(MMA)(A)	20-120	20-140	20-160	20-180
Output Current Range(LIFT TIG)(A)	20-120	20-140	20-160	20-180
Load Voltage(V)	16-21	16-22	16-23	16-24
Rated Duty Cycle(%)	60	60	60	60
Wire Feed Speed(M/min)	3-15	3-15	3-15	3-15
Gas Flow(L/min)	15-20	15-20	15-20	15-20
Dimensions(mm)	475195350	475195350	475195350	475195350
Weight(Kg)	7	7.3	8	8.3
Usable Welding Rod(mm)	1.6-3.2	1.6-3.2	1.6-4.0	1.6-5.0
Usable Electrode(mm)	0.8-1.0	0.8-1.0	0.8-1.0	0.8-1.0

Key Advantages of Our 300A IGBT MIG MMA Welding Machine

Heavy-Duty IGBT Inverter Technology for Sustained Production

At the core of this industrial fabrication welding machine is advanced IGBT inverter technology, which delivers consistent 300A output power while reducing energy consumption by up to 30% compared to traditional welding equipment. Its 60% rated duty cycle supports continuous welding during batch fabrication tasks, eliminating downtime and boosting overall production efficiency for manufacturing facilities.

Precision Digital Control for Uniform Weld Quality

The integrated digital control system enables precise adjustment of welding current, voltage, and wire feed speed (3-15 M/min), ensuring stable arc performance and uniform weld formation across every production piece. This precision drastically reduces welding defects such as blowholes and undercut, minimizing post-weld rework and improving the finished product pass rate for our business partners.

Multi-Process Compatibility for Diverse Fabrication Needs

This multi-process inverter welding machine supports MIG, gasless MIG, MMA, and LIFT TIG welding processes, with compatibility for welding wire diameters of 0.8-1.0mm and electrode diameters of 1.6-5.0mm. It seamlessly adapts to welding mild steel, stainless steel, and low alloy steel, eliminating the need for multiple dedicated machines for diverse fabrication projects.

Robust Safety Protection for Long-Term Operational Stability

The full-suite safety system includes over-voltage, under-voltage, over-current, over-heat, and short-circuit protection, effectively preventing equipment damage from abnormal operating conditions. Its intelligent fan cooling system maintains optimal operating temperatures during continuous production, reducing noise and extending the service life of core components, lowering long-term maintenance costs for industrial clients.

Uses of IGBT MIG MMA Welding Machine 300A

Industrial Fabrication of Metal Structural Parts

It serves as the core welding equipment for fabrication workshops, undertaking the welding processing of low carbon steel and low alloy steel structural parts, including the production of mechanical accessories, construction steel components and industrial frame parts. Supporting various wire and electrode specifications, it meets the batch fabrication needs of industrial parts and ensures the structural stability of welded products.

On-Site Welding of Outdoor Engineering Construction

For on-site construction teams, the machine’s gas/gasless dual-mode and lightweight design make it ideal for outdoor small steel structure splicing, such as temporary steel frame assembly and on-site installation of metal building components. It can work stably without fixed gas sources, adapting to the complex welding environment of construction sites.

Welding and Repair of Industrial Mechanical Equipment

In mechanical processing enterprises, it is applied to the welding repair of machine tool parts, metal molds and production equipment components. Its precise current control avoids secondary damage to precision parts, and the continuous working capacity meets the maintenance needs of industrial production equipment.

Batch Welding of Light Industrial Metal Products

For light industrial production workshops, it is suitable for the batch welding of metal boxes, frames and sign bases. The ultra-low spatter characteristic improves the aesthetics of finished products, and the high welding efficiency matches the fast production rhythm of light industrial enterprises.
