Views: 0 Author: Site Editor Publish Time: 2026-05-20 Origin: Site

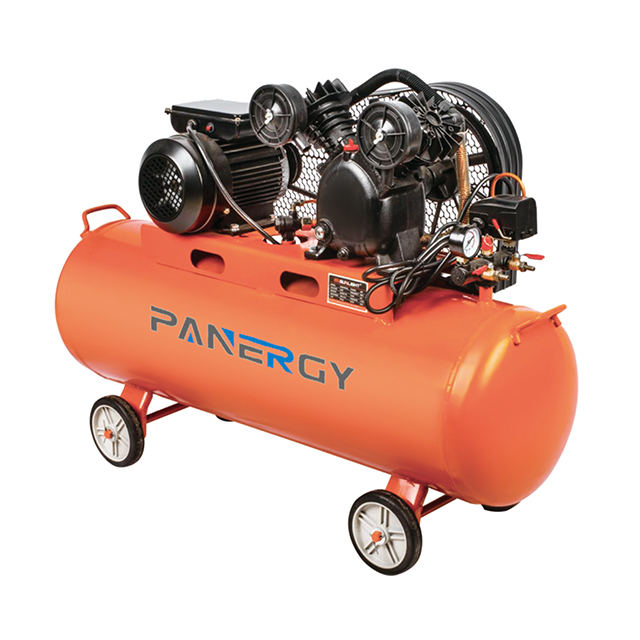

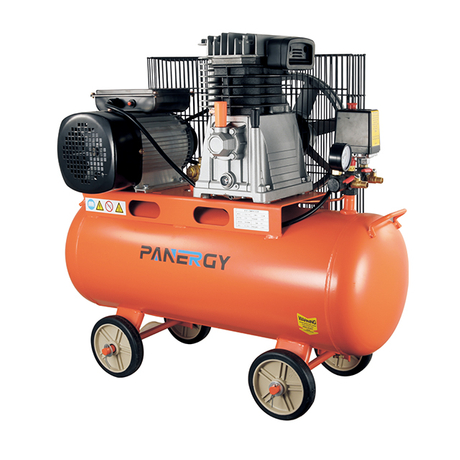

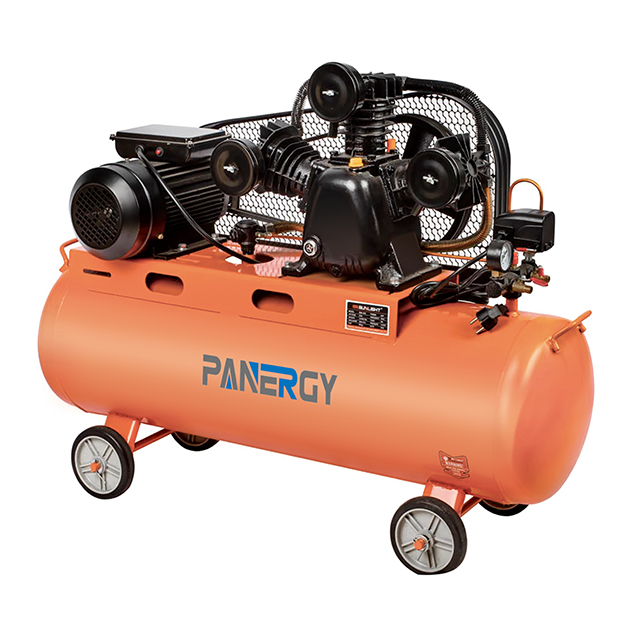

Facilities evaluating compressed air systems often face a critical choice. You must decide between belt-driven and direct-drive architectures. This decision impacts daily operations heavily. It also affects long-term maintenance budgets. A Belt Driven Air Compressor utilizes a pulley and V-belt system. It connects the motor to the compressor pump. This configuration allows independent rotation speeds. We will move beyond basic definitions in this evaluation. We evaluate the operational realities of these systems. We examine lifecycle expenses and structural risks. You will learn how to determine if they align with specific facility demands. Our goal is to provide clarity for your next major equipment specification.
Mechanical Isolation: Belt drives act as a mechanical fuse; in the event of an overload, the belt slips, preventing catastrophic, cascading damage to the motor and pump.
Adjustability: Output pressure and CFM can be physically modified post-installation by simply changing pulley ratios, offering flexibility that rigid direct-drive systems lack.
Cost vs. Maintenance Trade-off: While initial capital expenditure is lower and maintenance is DIY-friendly, belt-driven systems require strict adherence to tensioning schedules to prevent efficiency-draining friction and slip.
Idle Load Advantage: Unlike gear-driven systems that require constant pressure to lubricate gearboxes, belt-driven systems can idle at near-zero pressure, significantly cutting wasted energy costs.
Kinetic energy transfers from the electric motor to the pump via high-tension rubber belts. Pulleys guide these belts to deliver power smoothly. You rely on friction and precise tension to drive the compression cycle. The V-belt design wedges tightly into the pulley grooves. This wedge effect increases grip under heavy loads. It prevents immediate slippage when the motor draws peak current. You must maintain this transmission pathway carefully. Worn grooves or polished belts disrupt this energy transfer immediately.
A major benefit involves adjusting operational speeds mechanically. Varying pulley diameters allow a high-speed motor to drive a pump at a much lower speed. For instance, a 2-pole motor running up to 14,000 RPM can power a slower, larger pump. This specific configuration produces higher torque. It does so without straining your electrical system or the pump valves. You achieve a cooler running pump. You also reduce the wear rate on internal cylinders. This mechanical gearing strategy offers immense customization for specific industrial applications.
Rubber belts serve as natural vibration dampeners. They absorb sudden operational shocks during harsh startup phases. This limits mechanical resonance from echoing across your facility floor. You protect sensitive internal bearings as a result. Rigid coupling systems transmit every minor vibration directly into the motor shaft. A Belt Driven Air Compressor breaks this hard mechanical link. It creates a forgiving barrier between the prime mover and the heavy workload.
Best Practice: Always upgrade to cogged V-belts for heavy-duty applications. They bend more easily around small pulleys and dissipate heat much faster than standard smooth belts.
Full-load efficiency remains relatively matched across both technologies. Both can achieve 98-99% efficiency given high-quality engineering. The deciding factor usually boils down to idle energy consumption. You must evaluate what happens when tools stop demanding air. Gear-driven systems carry a heavy parasitic load. They must maintain 2.5 to 4 bar of internal pressure. This pressure keeps internal gears lubricated during idle phases. Conversely, belt-driven models can idle at near-zero pressure. This drastically cuts wasted energy costs over an annual production cycle.
Belt drives require a higher frequency of routine maintenance. You must check tension levels often. You will replace stretched belts periodically. Direct drives require less frequent attention. However, they demand highly complex maintenance procedures. Replacing a shaft seal on a direct-drive unit requires dismantling the entire motor-pump coupling. This escalates downtime substantially. It also requires specialized labor rates. Belt systems keep the labor accessible. Your internal technicians can swap a belt in minutes using standard hand tools.
Direct drives feature fully enclosed designs. They excel in harsh, extreme-temperature, or highly corrosive environments. Belt drives remain susceptible to environmental extremes. Extreme heat causes rubber compounds to stretch prematurely. Freezing temperatures induce brittleness and cracking. You must operate belt systems in climate-controlled or moderate ambient environments. High atmospheric dust also acts as an abrasive. It grinds away the rubber against the metal pulleys.
System Comparison Chart
Evaluation Metric | Belt Driven Systems | Direct Drive Systems |
|---|---|---|
Idle Energy Waste | Minimal (can idle near zero pressure) | High (requires 2.5-4 bar for lubrication) |
Maintenance Frequency | High (regular tension checks) | Low (extended service intervals) |
Maintenance Complexity | Low (DIY friendly) | High (requires coupling disassembly) |
Environmental Tolerance | Moderate (sensitive to extreme temperatures) | High (enclosed and robust) |
Pressure Adjustability | Excellent (simple pulley swap) | Poor (rigid factory settings) |
Intermittent Duty Cycles: These systems are ideal for operations not requiring 24/7 continuous air. They handle frequent start/stop cycles effectively. Auto repair shops and custom fabrication bays benefit greatly here. The belts absorb the frequent startup torque spikes safely.
Variable Production Demands: Choose this system if you plan to scale pressure in the future. You might need to jump from 90 PSIG to 175 PSIG. Upgrading a Belt Driven Air Compressor requires a simple pulley swap. You avoid a total system overhaul. This modularity protects your initial capital investment as your business expands.
Internal Maintenance Capabilities: These units suit organizations prioritizing in-house preventative care. You do not need expensive, specialized OEM technicians for basic transmission repairs. Your existing maintenance crew can handle alignments and tensioning easily.
Unmanaged belt tension inevitably leads to slippage. This alters the speed ratio immediately. It reduces your effective CFM output drastically. Slippage also accelerates shaft and bearing wear due to excessive heat generation. The friction creates localized hot spots on the pulleys. These hot spots degrade the rubber compounds faster. You will experience premature belt snapping if you ignore tensioning schedules.
Common Mistake: Tensioning belts purely by "feel" or thumb pressure. You should always use a sonic tension meter or a mechanical deflection tool. This ensures you meet the exact tension specifications provided by the manufacturer.
Belt-driven units typically demand a larger physical footprint. They require heavier mounting infrastructure compared to compact direct-drive counterparts. The side-by-side or stacked motor arrangements take up valuable floor space. The lateral torque generated by the belts requires rigid, heavy base plates. You must plan your utility room layout carefully. Ensure adequate clearance around the belt guards for safe maintenance access.
Industry professionals often debate equipment noise levels. Belts inherently dampen motor vibration. However, poor alignment generates a distinct slapping noise. Loose belts hit the internal safety guards repeatedly. This makes strict alignment protocols mandatory. You must use laser alignment tools during installation. Perfect parallel and angular alignment keeps the acoustic profile exceptionally low. It prevents the annoying cyclical thumping associated with poorly maintained units.
Calculating True CFM: You must audit the total CFM of all pneumatic tools running simultaneously. You should then mandate a 25% to 30% safety margin. This buffer accounts for natural system leaks over time. It also prepares you for future tooling additions. Do not size a compressor based solely on peak sporadic usage without calculating continuous baseline demand.
Duty Cycle Auditing: Match the compressor's rated duty cycle against your typical shift hours. We generally recommend a Belt Driven Air Compressor for duty cycles under 70-80%. Exceptions exist if models are specifically engineered for continuous use. Pushing a standard intermittent unit to a 100% duty cycle overheats the pump rapidly.
Motor Sizing and Electrical Load: Ensure your facility's electrical infrastructure handles the targeted motor. Check specific phase and voltage requirements carefully. Most industrial setups require three-phase power for anything over 5 horsepower. Confirm your breaker panel capacity before finalizing any equipment purchases.
CFM Calculation Example
Equipment / Tool | CFM Requirement | Simultaneous Usage Factor | Adjusted CFM |
|---|---|---|---|
Impact Wrench (1/2") | 5 CFM | 100% | 5 CFM |
Paint Spray Gun | 12 CFM | 100% | 12 CFM |
Air Grinder | 8 CFM | 50% | 4 CFM |
Total Baseline Demand | 21 CFM | ||
Recommended Safety Margin (30%) | + 6.3 CFM | ||
Minimum Compressor Sizing Target | 27.3 CFM |
A belt-driven air compressor is not an inferior legacy technology. It remains a highly flexible, structurally forgiving system. It proves ideal for dynamic workloads and budget-conscious operations. You gain significant mechanical isolation and post-installation flexibility.
We recommend prioritizing belt-driven models if pressure flexibility matters to your facility. Choose them if lower idle energy costs align with your OpEx strategy. You should also consider them if your internal team prefers DIY maintenance. Take immediate action by auditing your true CFM requirements. Inspect your ambient operating environment next. Finally, match your duty cycle needs against the robust capabilities of a modern belt-driven platform.
A: It is a positive displacement compressor. It utilizes a V-belt and pulley system. This mechanism transfers rotational energy from the electric motor directly to the compression pump. It allows the motor and pump to spin at different optimal speeds.
A: Neither is universally better. Direct-drive is superior for harsh environments and 24/7 heavy industrial use. Belt-drive is better for intermittent use, facilities needing pressure flexibility, and lower idle energy costs.
A: You should perform visual tension inspections monthly. Belts typically require full replacement every 500 to 1,000 operational hours. This timeline heavily depends on your ambient temperature and daily load conditions.
A: Yes. Unlike rigid direct-drive systems, the output performance can be altered physically. You simply change the diameter ratio of the motor and pump pulleys to adjust the RPM and PSIG.
