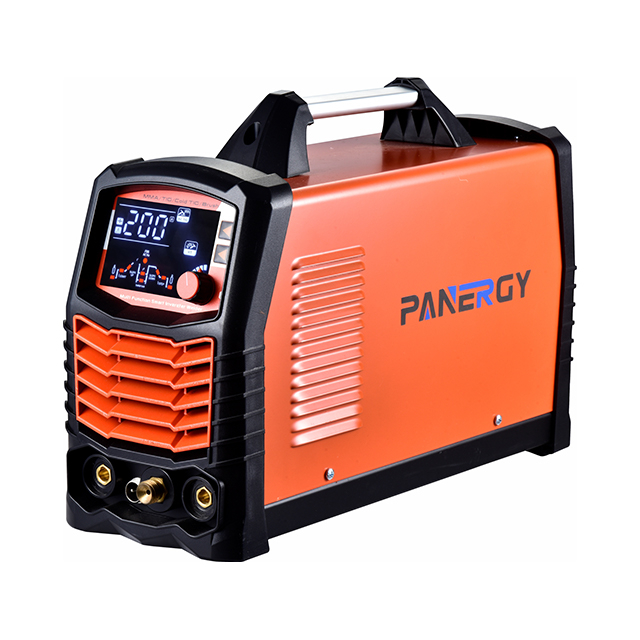

200A Inverter Dual TIG Welder Alloy Welding

● FEATURES
Microprocessor controlled, TIG (high frequency HF or LIFT striking).PULSE TIG and MMA inverter welding machine in direct and alternatingcurrent (DC). Use with a wide range of materials such as steel, stainlesssteel, aluminium, titanium, copper, nickel, magnesium and their alloys.

Availability:



Inquire Add to Basket

Description

Specification

Product Advantage

Product Uses

Download File

Product Overview

The 200A Inverter Dual TIG Welder is a high-precision, multi-functional welding system designed for specialty fabrication enterprises, precision manufacturing users and alloy processing businesses, focusing on alloy welding and non-ferrous metal fabrication that demand extreme precision and material adaptability. Controlled by a high-performance microprocessor, this welder integrates TIG (high frequency HF or LIFT striking), PULSE TIG and MMA welding modes in DC, supporting a wide range of materials including steel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys— a key advantage for alloy processing teams that handle diverse specialty materials. With an AC230V input (50/60Hz) and rated input capacity of 4.5KVA, it features a TIG output current range of 30-200A and MMA output range of 30-180A, with 0-100A arc force current for stable MMA welding performance. The adjustable welding time (0-999ms) and interval time (0-999ms), plus 0-10s front and post blowing time, enable precise control of the welding process for thin sheets and specialty alloys, avoiding burn-through and oxidation. Boasting HF arc start technology and IP21S protection grade, it ensures reliable and safe operation in precision fabrication workshops, with a usable welding rod range of 1.6-5.0mm for MMA mode and complete TIG welding accessories for professional TIG fabrication. Weighing 7.8kg with dimensions of 420×160×310mm, it balances portability and precision, suitable for both fixed workshop production and on-site specialty alloy repair.

200A Inverter Dual TIG Welder Alloy Welding

MODEL	TIG/MMA-140	TIG/MMA-160	TIG/MMA-200	TIG/MMA-250	TIG/MMA-300
Input Power Voltage(V)	AC230V	AC230V	AC230V	AC230V	AC230V
lnput Power Frequency(Hz)	50/60	50/60	50/60	50/60	50/60

Rated lnput Capacity(KVA)	2.7	3.3	4.5	6.3	8.3
Output Current Range(TIG)(A)	20-140	20-160	30-200	30-250	40-300
Output Current Range(MMA)(A)	20-120	20-140	30-180	30-220	40-250
Welding Time (ms)	0-999	0-999	0-999	0-999	0-999
Interval Time (ms)	0-999	0-999	0-999	0-999	0-999

Front Blowing Time(s)	00-10	00-10	00-10	00-10	00-10
Post Blowing Time(s)	00-10	00-10	00-10	00-10	00-10
ARC Force(A)	0-100	0-100	0-100	0-100	0-100
No-Load Voltage(V)	65	65	65	65	65
Rated Duty Cycle(%)	60	60	60	60	60

Arc Start	HF	HF	HF	HF	HF
Power Factor(COSΦ)	0.85	0.85	0.85	0.85	0.85
Protection Grade	IP21S	IP21S	IP21S	IP21S	IP21S
Dimensions(mm)	420160310	420160310	420160310	420160310	420160310
Weight(Kg)	6.2	6.5	7.8	8	9

Usable welding rod(mm)	1.6-2.5	1.6-3.2	1.6-5.0	1.6-5.0	1.6-5.0

Advantages of 200A Inverter Dual TIG Welder

Dual-Process TIG/MMA Versatility for Specialty Fabrication

As a TIG/MMA alloy welding machine, its integrated dual welding modes eliminate the need for multiple equipment for different welding tasks, greatly improving the equipment utilization rate of specialty fabrication enterprises. TIG mode is optimized for precision welding of non-ferrous metals and thin sheets, while MMA mode meets the basic welding needs of structural parts, realizing one machine for multiple professional uses.

Precision Arc Control for Specialty Alloy Materials

The microprocessor-controlled arc system and adjustable pulse TIG function enable precise control of weld bead size and shape, a critical feature for welding aluminium, titanium and nickel-based superalloys. The inert gas shielding in TIG mode avoids oxidation and porosity of non-ferrous metals, maintaining the original material properties such as conductivity and corrosion resistance— the core demand for alloy processing businesses.

Advanced HF Striking & Welding Process Customization

Equipped with HF arc start technology, the welder achieves arc ignition without electrode contact, avoiding scratch marks on the surface of precision workpieces and ensuring the aesthetic of high-end fabrication products. The customizable welding time, interval time and gas blowing time allow users to adjust the welding process according to different materials and thicknesses, meeting the personalized precision welding demands of specialty manufacturing users.

Comprehensive Protection & Professional Accessory Compatibility

Built-in thermostatic, overcurrent, overvoltage and undervoltage protections ensure the safety of the welder and workpieces in long-term precision fabrication. The remote control connector enables flexible operation for large workpieces, while the complete TIG welding accessories (including welding torch, gas regulator and ground clamp) provide a one-stop solution for professional TIG welding, reducing the accessory matching cost for enterprises.

Uses of 200A Inverter Dual TIG Welder

Non-Ferrous Metal Alloy Welding

The top choice for aerospace, automotive and marine fabrication enterprises, it is used to weld aluminium, copper and magnesium alloy parts for aircraft components, automotive engine parts and marine equipment. Its precise arc control ensures perfect welding for thin non-ferrous sheets without burn-through, maintaining the material’s mechanical and physical properties.

Stainless Steel Precision Fabrication

Ideal for food, pharmaceutical and chemical industry equipment manufacturers, it is applied in the welding of austenitic/ferritic stainless steel processing equipment, medical devices and decorative stainless steel products. The smooth and clean welds are easy to polish and sanitize, meeting the strict hygiene and corrosion-resistance standards of these industries— a key benefit of this precision dual-process welder for non-ferrous metal fabrication.

Thin Sheet Metal Professional Welding

Suitable for electronic enclosure manufacturing and automotive panel repair teams, it is used to weld 0.5mm+ thin gauge ferrous and non-ferrous sheets. The adjustable pulsed current prevents warping, distortion and burn-through, the common problems of thin sheet welding, ensuring the precision and flatness of thin-walled components.

On-Site Specialty Alloy Repair

Used by industrial machinery maintenance teams and power plant repair teams for the on-site precision repair of specialty alloy components such as power plant turbine blades and oil/gas downhole parts. Its portability and precise welding performance ensure minimal damage to surrounding materials, with high accuracy for repairing delicate high-quality alloy components in tight industrial spaces.
